Optical module

Optical chips are located at the upstream of the optical communication industry chain. They are the core components of modern optical transmission devices and the core components of current optical modules. Its technology represents the cutting-edge research fields of modern optoelectronic technology and microelectronics technology. With the advent of the GPU era, optical chips will become the most core chips in high computing power technology.

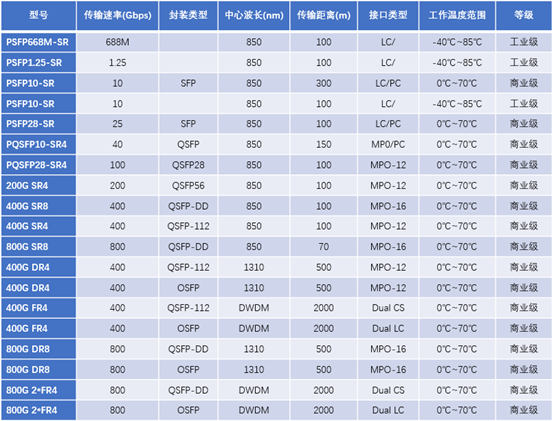

The company has a complete layout for optical chips, adopts its own IDM approach, and possesses a complete full industrial chain Foundries. The company's product series include 668M, 1.25G, and 10G. 25G, 40G, 100G, 200G, 400G, 800G, VCSEL modulation mode, suitable for data centers, available in stock.

PQSFP28-SR4

Overview

The ColorChip 100G QSFP28 SR4 is a 4×25Gbps multimode fiber, hot pluggable optical transceiver. The module integrates four parallel lanes with data rate at 25.78Gbps each lane. It can transmit up to 70m on fiber OM3 fiber or 100m on OM4 fiber with FEC.

Key Features

Compliant with IEEE Std 802.3bm

Compliant with SFF-8665

Transmission data rate up to 25.78125 Gbps Data rate per channel

High Reliability 850nm VCSEL technology

Electrically hot-pluggable

Single +3.3V power supply

Case temperature range: 0 ~ +70℃

Maximum power consumption 2.5W

Single MPO12 connector

RoHS complaint

Applications

100GBASE-SR4 Ethernet links

Data centers

200G SR4

Overview

The ColorChip 200G QSFP56 SR4 is a 4×50Gbps multimode fiber, hot pluggable optical transceiver. The module integrates four parallel lanes with baud rate at 26.5625GBd PAM4 modulation each lane. It can transmit up to 70m on fiber OM3 fiber or 100m on OM4 fiber with FEC.

Key Features

• Compliant with 200G-SR4 optical specifications
• 4×53.125Gbps electrical interface (200GAUI-4)
• Reach up to 70m on MMF(OM3)
• Reach up to 100m on MMF(OM4)
• Single +3.3V power supply
• Case temperature range: 0 ~ +70℃
• Maximum power consumption 4W
• Single MPO12 connector
• RoHS complaint

Applications

• 200G BASE-SR4 Ethernet links
• Data centers

400G SR4

Overview
The 400G QSFP-DD SR8 Transceiver is designed to transmit and receive serial optical data links up to 53 .125Gbps data rate(per channel) by PAM4 modulation format over multi-mode fiber.

Key Features

• Up to 53.125Gbps data rate per channel by PAM4 modulation
• Support 400GAUI-8 electrical interface
• Integrated 850nm VCSEL array and PD array
• Single MPO16 connector receptacle optical interface compliant
• DDM function implemented
• Hot-pluggable QSFP-DD form factor
• Single +3.3V power supply
• Maximum link length of 100m on 16 core MPO OM4 (MMF) fiber
• Compliant with ROHS2.0

Applications

• Data centers and Cloud Networks
• 400GE Interconnect Requirements.

400G SR8

Overview
The 400G QSFP-DD SR8 Transceiver is a QSFP-DD Optical transceiver for 8 x 26.56GBaud optical links. It is compliant with the QSFP-DD MSA specifications. It operates at 26.56GBaud up to 100m over OM4 Multi-mode fiber with KP4 FEC.

Key Features

• 400GE Interconnect Requirements.
• Hot-pluggable QSFP-DD form factor
• Case temperature range of 0℃to +70℃
• Maximum link length of 100m on OM4 fiber with KP4 FEC
• +3.3V single power supply
• Power dissipation < 10W
• Operating case temp Commercial: 0°C to +70 °C
• MPO-16 APC connector
• RoHS compliant
• Monitors for VCSEL bias, transmitted, received power , module

Applications

• Data centers and Cloud Networks
